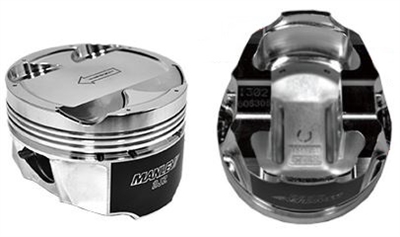

Manley 2JZ Platinum Turbo Tough Piston Set 9:1
Manley 2JZ Platinum Turbo Tough Piston Set 9:1

List Price: $1,620.12
Our Price: $1,490.50
Sale Price: $1,399.00
Savings: $221.12
Part Number: 609202CE-6 / 609205CE-6 / 609207CE-6 / 609210CE-6


Availability:: Usually Ships in 3 to 5 Business Days
Product Code: DM3933


Piston Size*:

Qty:
Description

Manley 2JZ Platinum Turbo Tough Extreme Duty Piston Set 9:1
Manley Toyota 2JZGTE, -8cc Dish, 9:1 CR, Platinum Extreme Duty Piston Set with Pins, Locks, and Rings. This 6pc piston set fits all 2JZ-GTE and 2JZ-GE engines.

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts and will accommodate +1mm valve sizes. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available. Recommended clearance: .0035" measured 1.100" down from the bottom of the oil ring groove.


Please select the size of pistons you need in the drop down menu:
*86.25mm (PN: 609202CE-6) --BACK ORDERED--
*86.50mm (PN: 609205CE-6)
*86.75mm (PN: 609207CE-6)
*87.00mm (PN: 609210CE-6)
